New Products: Pirelli Diablo Rosso IV Corsa Tyres

Advertisment

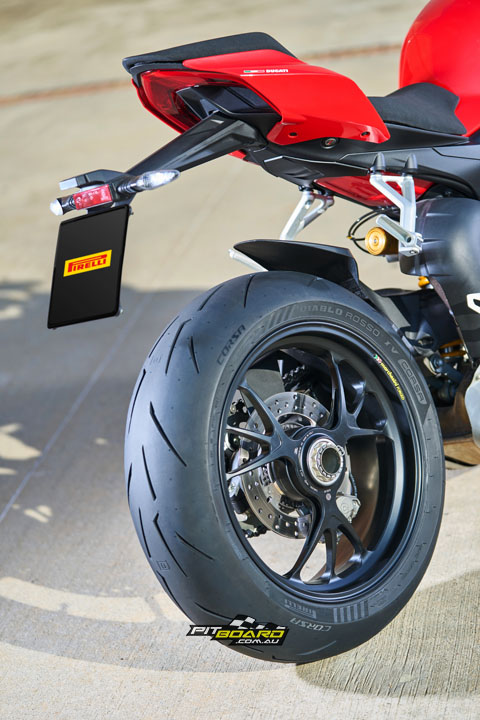

Pirelli have unveiled the new DIABLO ROSSO IV Corsa, the high-performance hypersport tyre that raises the bar of sport riding even higher within the DIABLO ROSSO family. The new DIABLO ROSSO IV Corsa represents a fiercer version of the DIABLO ROSSO IV.

Pirelli say the Diablo IV Corsa was created to satisfy the most demanding motorcyclists seeking a tyre capable of high performance, to fully utilise the potential of their bikes.
Pirelli say the Diablo IV Corsa was created to satisfy the most demanding motorcyclists seeking a tyre capable of high performance, to fully utilise the potential of their bikes.

The new DIABLO ROSSO IV Corsa has been released on the 150th anniversary of Pirelli and becomes an integral part of the celebrations. During 2022 a limited edition DIABLO ROSSO IV Corsa pays homage to this milestone and features the Pirelli’s 150th anniversary logo on its sidewall.

During 2022 a limited edition DIABLO ROSSO IV Corsa pays homage to this milestone and features the Pirelli's 150th anniversary logo on its sidewall.
During 2022 a limited edition DIABLO ROSSO IV Corsa pays homage to this milestone and features the Pirelli’s 150th anniversary logo on its sidewall.

Pirelli say the DIABLO ROSSO IV Corsa is the ideal choice for riders who love a dynamic riding style on winding roads and mountain passes and want a tyre to match the sporty performance of their motorcycle. Riders who are passionate about tuning, who look for performance upgrades and take care of the bike set-up and aesthetics. Overall, the new ROSSO IV Corsa is the perfect choice for riders looking for that extreme performance before going to full slicks.

The new hoops benefit from higher grip in dry conditions, thanks to a slicker tread design that guarantees a larger footprint area alongside the use of innovative compounds that increase mechanical grip levels. The innovative technologies applied to the carcass make DIABLO ROSSO IV Corsa able to adhere to the micro-roughness of the asphalt, ensuring precise feedback and a feeling of control.

Pirelli have put plenty of development into making sure the new hoops talk to the rider at high speeds.
Pirelli have put plenty of development into making sure the new hoops talk to the rider at high speeds.

Performance consistency over multiple riding sessions is made possible by the characteristics of the tread pattern, the repetition of the grooves offers high resistance to stress and the new arrangement of the compounds, ensures optimal thermal balance.

The tread design of DIABLO ROSSO IV Corsa features a calculated repetition of the central grooves and a slicker shoulder area, for a fill ratio 25% lower than the DIABLO ROSSO IV. In the central area, the longitudinal grooves ensures directional stability and water evacuation. Their position helps to evenly wear the tyres, while increasing the structural stability of the tyre to give performance consistency over multiple riding sessions.

The DIABLO ROSSO IV Corsa features a large slick area on the shoulders, able to offer high levels of grip, precision and stability at maximum lean angles.
The DIABLO ROSSO IV Corsa features a large slick area on the shoulders, able to offer high levels of grip, precision and stability at maximum lean angles.

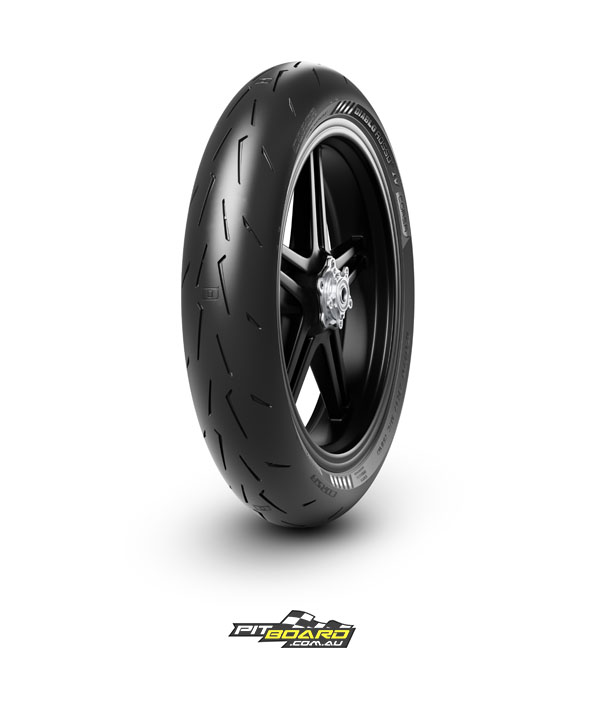

The front tyre is divided into three areas using two different compounds. The central band has a Full Silica compound that occupies around 45% of the section width and is present in the contact area used up to 25 degrees of lean angle.

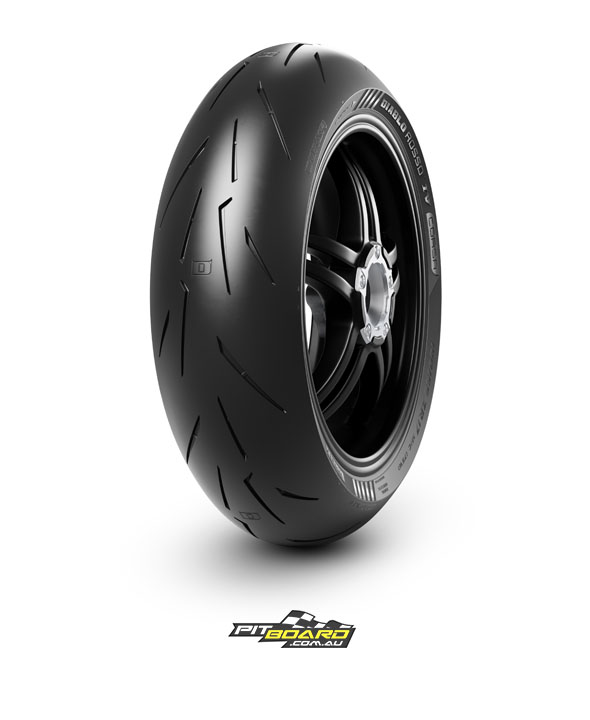

The side areas have a softer compound, also Full Silica, thanks to the use of innovative resins that offer excellent grip and improves the front tyre feedback. The rear tyre also has a bi-compound scheme for excellent road performance and works in harmony with the front. The central Full Silica compound allows for a quick warm-up and excellent chemical grip on different surface conditions.



The shoulder compound is 100% Carbon Black and derives directly from the compounds of DIABLO Supercorsa SC used in racing competitions. Pirelli say this compound offers support at full lean and traction during acceleration managing the torque generated by the latest generation superbikes.

The profiles of DIABLO ROSSO IV Corsa are race-derived and are characterised by a multi radius design that improves the tyre’s handling. The central area has a sharper profile to facilitate immediate lean and rapid change of direction. In the lateral areas, Pirelli say the profile curvature is less accentuated in order to increase the contact area and ensure maximum traction when cornering. Both front and rear tyres follow a similar profile design, ensuring a perfectly balanced and neutral behaviour.

"The profile curvature is less accentuated in order to increase the contact area and ensure maximum traction when cornering."
“The curvature is less accentuated in order to increase the contact area and ensure maximum traction when cornering.”

With the DIABLO ROSSO IV Corsa, Pirelli uses a racing-derived structure with zero-degree steel belt, this manages to adapt perfectly to different levels of stress without compromising comfort and work with advanced electronic control systems. The stiff cord technology features structural cords that are more rigid and are distributed with less density (-20%) compared to a standard sport tyre. This scheme leaves more room for the rubber compound, which improves riding feeling and precision thanks to its damping properties, thus transmitting to the rider, a safety feeling and control of the motorcycle.



Pirelli DIABLO ROSSO IV Corsa Sizes

Front

  • 110/70 ZR 17 M/C 54W TL
  • 120/70 ZR 17 M/C (58W) TL

Rear

  • 150/60 ZR 17 M/C 66W TL
  • 180/55 ZR 17 M/C (73W) TL
  • 180/60 ZR 17 M/C (75W) TL
  • 190/50 ZR 17 M/C (73W) TL
  • 190/55 ZR 17 M/C (75W) TL
  • 200/55 ZR 17 M/C (78W) TL
  • 200/60 ZR 17 M/C (80W) TL
